Over The Shore

M150 Trackway Container

Also in this section

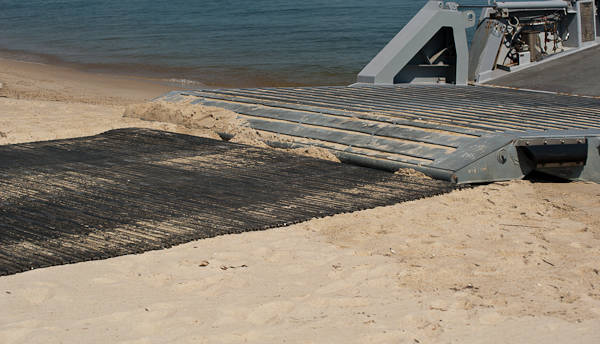

Portable container systems for deployment and recovery of M150 Trackway® enabling rapid beach landing.

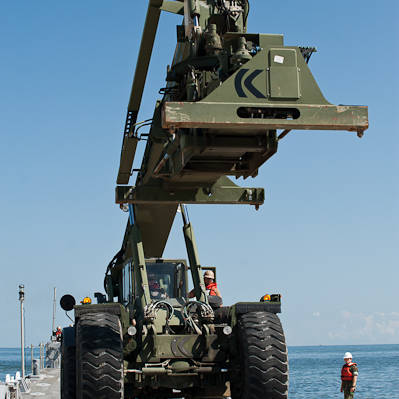

The mechanised solution is operatored from a Rough Terrain Container Handling (RTCH) or Telehandler, providing clear access both on rough terrain, and beyond the surf zone to the shore.

CAPABILITIES

  • ACCESS FROM BEACH LANDING CRAFT
  • CARRIES 295 FEET OF TRACKWAY®
  • RTCH OR TELE-HANDLER MOUNTED
  • INTERCHANGEABLE CONTAINERS
  • ISO CONTAINER
  • PROTECT ENVIRONMENTS

DEPLOYMENT & RECOVERY

  • Connected to the RTCH top handler via twistlocks;
  • Deployed and recovered in less than six minutes;
  • Controlled hydraulically from the cab;
  • Roadway immediately ready for traffic;
  • Supplied with anchors for use on inclines;
  • ISO container for simple logistics.

M150 CAPABILITIES

  • Suitable for long periods of water immersion;
  • Withstands vehicles up to MLC* 150;
  • Withstands temperatures ranging from -40°F to +140°F;
  • Easy splitting and joining in complete darkness, submerged or if joints and locks are full of dirt and sand;
  • Independently climatic tested to MIL-STD 810F for Cold, Humidity, Heat, Solar & Dust, Vibration, Salt Mist and Shock;
  • Width 15 feet.

*Military Load Classification (MLC)

The M150 Trackway Container is designed to be constantly reused with a long operational life.

The modular Trackway® system comprising of single aluminum panels, connected by male/female joints and secured by locking pins. Individual panels can be easily removed or replaced as required.

As a multipurpose solution the Trackway® is suitable for roadways, bridge access, Rapid Runway Repair (RRR)Helicopter Landing Mats (HLM), and general infrastructure use.
